Introducing ROKRAT

This blog was authored by Warren Mercer and Paul Rascagneres with contributions from Matthew Molyett.

Executive Summary

A few weeks ago, Talos published research on a Korean MalDoc. As we previously discussed this actor is quick to cover their tracks and very quickly cleaned up their compromised hosts. We believe the compromised infrastructure was live for a mere matter of hours during any campaign. We identified a new campaign, again leveraging a malicious Hangul Word Processor (HWP) document. After analyzing the final payload, we determined the winner was… a Remote Administration Tool, which we have named ROKRAT.

Like in the previous post, the campaign started with a spear phishing email containing a malicious attachment, the HWP document. One of the identified emails was sent from the email server of Yonsei, a private university in Seoul. The address used in the email was '' which is the contact email of the Korea Global Forum where the slogan in 2016 was "Peace and Unification of the Korean Peninsula". This fact gives more credit and legitimacy to the email.

The HWP document contained an embedded Encapsulated PostScript (EPS) object. As with our previous publication this again is zlib compressed and trivial to obtain. The purpose of the EPS is to exploit a well-known vulnerability (CVE-2013-0808) to download a binary disguised as a .jpg file. This file is decoded and finally an executable is launched: ROKRAT. This RAT has the added complexity that the command and control servers are legitimate websites. The malware uses Twitter and two cloud platforms, Yandex and Mediafire, apparently for both C2 communications and exfiltration platforms. Unfortunately, these platforms are difficult to block globally within organizations as their use can be viewed as legitimate in most cases. Additionally, these 3 platforms all make use of HTTPS connectivity, making it much more difficult to identify specific patterns or the usage of specific tokens.


Spear Phishing Campaign

Below are examples of the emails used against victims in South Korea

The first email we discovered was the most interesting. In this first sample, we observed the attackers praising the user for accepting to join a panel relating to the "Korean Reunification and North Korean Conference". The text in the email explains that the receiver should complete the document to provide necessary feedback. However, this appears to be a fake conference. The closest match we identified to any Unification conference was held in January 2017, which was the NYDA Reunification conference. The sender is '' which is the contact email of the Korea Global Forum

When we analyzed the email headers we were able to determine the Sender IP was With a little magic from our friend 'nslookup' we quickly determined this to be part of the Yonsei University network, the SMTP server in fact. We believe that the email address was compromised and abused by the attackers to send the email used in this campaign.

The sample filename translates as 'Unification North Korea Conference _ Examination Documents' which reinforces the text in the email about the reunification conference. For an added bonus the attacker even suggests in the email people who completed the document would get paid a 'small fee'. Perhaps the gift of embedded malware is the payment.

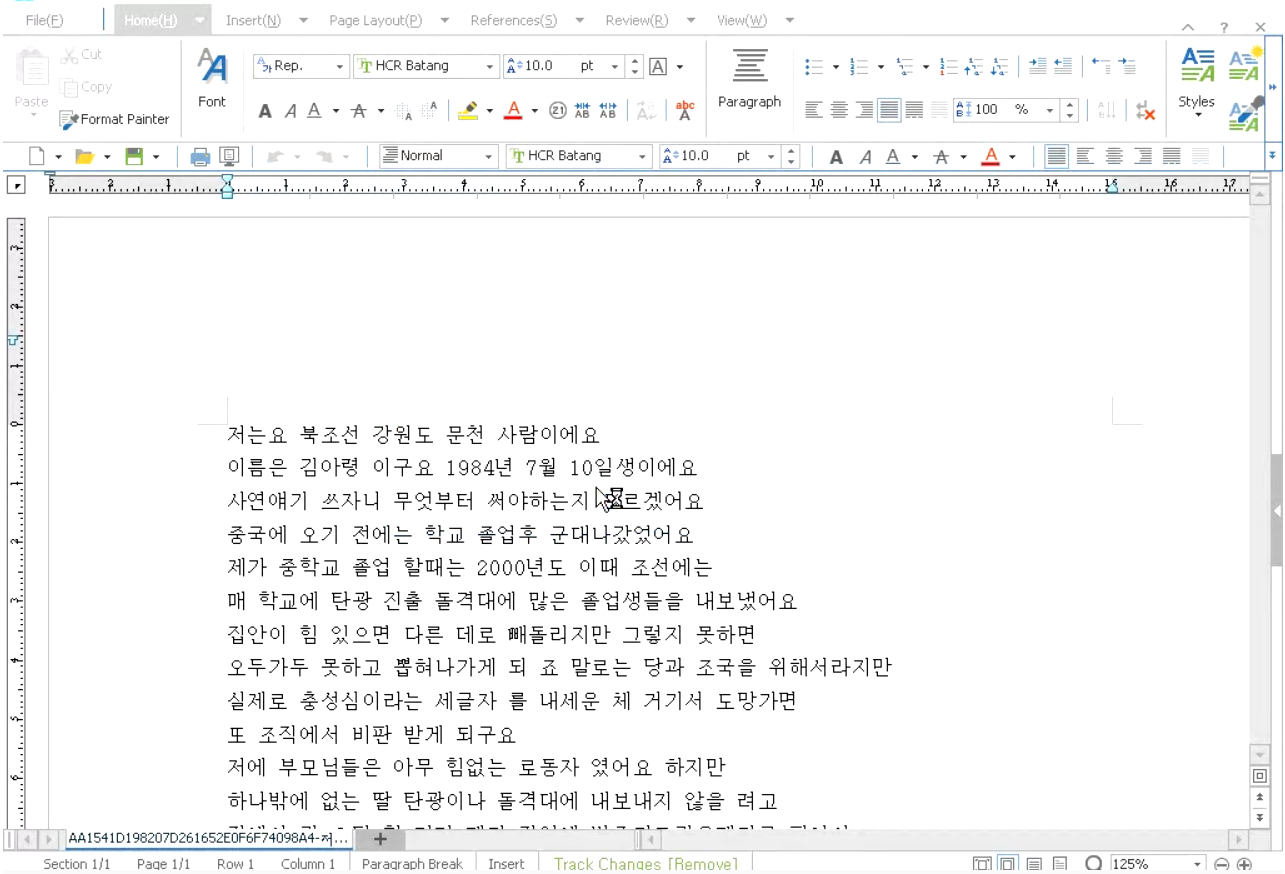

The second email Talos analyzed had less effort applied. The email was from a free Korean mail service provided by Daum, Hanmail, showing there was no attempt at trying to appear to be from an official body or person compared with the previous email. The subject was merely 'Request Help' while the attachment filename was 'I'm a munchon person in Gangwon-do, North Korea'. We suspect the attacker is hoping the victim will feel empathetic toward the sender as the Kangwon Province (where Munch'ŏn is located) was previously part of South Korea. The attachment contains a story about a person called 'Ewing Kim' who is looking for help.

The email's attachments are two different HWP documents both leveraging same vulnerability, CVE-2013-0808.

Malicious HWP Document

An HWP document is composed by OLE objects. In our case, it contains an EPS object named BIN0001.eps. As with all HWP documents the information is zlib compressed so you must decompress the .eps to get the true shellcode.

The shellcode used to exploit the CVE-2013-0808 can be identified in the EPS object:

An interesting thing is that the shellcode does not start with a 'normal' NOP sled using 0x90 but with 0x0404 (add al, 0x4):

user@lnx$ rasm2 -d 0404040404040404040490909090909090909090E8000000005E
add al, 0x4
add al, 0x4
add al, 0x4
add al, 0x4
add al, 0x4
call 0x19
pop esi

The purpose of the shellcode embedded in the 2 HWP documents is to download and to decode a payload available on the Internet. Once decoded, the file (a PE32) is executed. Here is the extracted URL which the document attempts to download the .jpg from:

SHA256: 7d163e36f47ec56c9fe08d758a0770f1778fa30af68f39aac80441a3f037761e

Filename: 통일북한학술대회_심사서류.hwp ("North Korea Conference _ Examination Documents")

URL: http://discgolfglow[.]com:/wp-content/plugins/maintenance/images/worker.jpg

SHA256: 5441f45df22af63498c63a49aae82065086964f9067cfa75987951831017bd4f

Filename: 저는요 북조선 강원도 문천 사람이에요.hwp ("I'm a munchon person from Gangwon Province in North Korea.")

URL: http://acddesigns[.]com[.]au/clients/ACPRCM/kingstone.jpg


ROKRAT Analysis

The RAT downloaded by the 2 HWP documents belong to the same family. The main difference between the samples are the Command and Control capabilities. One of the samples analyzed only uses Twitter to interact with the RAT, while the second one additionally uses the cloud platforms: Yandex and Mediafire. The Twitter tokens we were able to extract are the same in both variants. There is obvious ongoing effort to add features to this RAT to allow for more sophisticated levels of attacks.

Analysis Frustrations!

The ROKRAT author implements several techniques typically seen to frustrate human analysts and avoid sandbox execution.

First, the malware does not run on Windows XP systems. It uses the GetVersion() API to get the OS version. If the MajorVersion is 5 (corresponding to Windows XP or Windows Server 2003), the malware executes an infinite loop of sleep:

Additionally, the malware checks the current running processes in order to identify tools usually used by malware analysts or within sandbox environments. The code used to perform this task:

The malware checks the process names in use on the victim machine. It compares if the executed process name matches a partial name hardcoded in the sample. Here is the complete list:

If any of these processes are discovered running on the system during this phase of execution, the malware jumps to a fake function which generates dummy HTTP traffic. Additionally we discovered that if the malware is being debugged or if it was not executed from the HWP document (i.e. double clicking the binary) or if the OpenProcess() function succeed on the parent process, the fake function is also called.

The purpose of this appears to be to generate network traffic to provide some level of feedback/discovery during any dynamic analysis research. This could generate a seemingly 'good' indicator of compromise when in fact it is merely fake traffic generated. The fake function performs connections to the following URLs:


The Amazon URL displays a WWII game called 'Men of War' whilst the Hulu URL attempts to stream a Japanese anime show called 'Golden Time'

These URLs are not malicious. The malware pretends to navigate these locations. The files do not exist during the investigation and were downloaded only if a malware analyst tool is running on the system. We believe these URLs are used to attempt to trick any analysis.

C&C Infrastructure

ROKRAT uses a legitimate platform in order to communicate, receive orders and exfiltrate documents. In total, we identified 12 hardcoded tokens used to communicate to these legitimate platforms, all via their public APIs.

CC #1: Twitter:

The first CC discovered is Twitter. We identified 7 different Twitter API tokens hardcoded in the sample (Consumer Key + Consumer Secret + Token + Token Secret). The malware is able to get orders by checking the last message on the Twitter timeline. The order can be either execute commands, move a file, remove a file, kill a process, download and execute a file. The RAT is able to tweet also. The sent data is randomly prefixed by one following 3 characters hardcoded word:


To perform these tasks, the malware uses the official Twitter API:


CC #2: Yandex:

The second CC is Yandex and more specifically the Yandex cloud platform. This platform allows the creation of disks in the Yandex cloud. Concerning this CC, we identified 4 Yandex tokens hardcoded in the sample. The API is used to download and execute files or to upload stolen documents. The exfiltrated documents are uploaded to :

Where "12ABCDEF" is a random hexadecimal ID to identify the target and Doc20170330120000 contains the date.


CC #3: Mediafire:

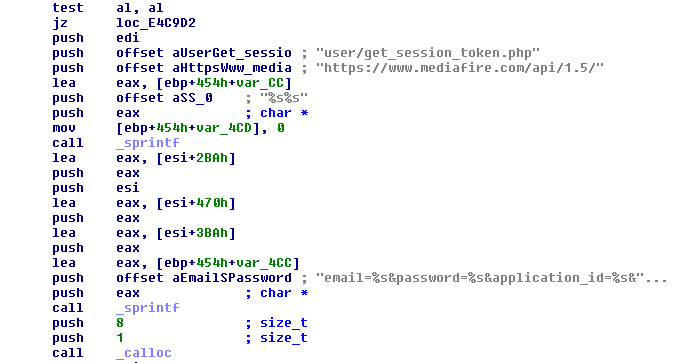

The last cloud platform used by the Remote Administration Tool is Mediafire. This website is used in the same way as Yandex, the purpose is to use the file storage provided by Mediafire in order to download and execute files or to upload stolen information:


In this case, the malware author hardcoded one account in the sample (email / password / application ID).


Additionally, one of the samples is able to capture screenshots of the infected system. To perform this task, the developer used the GDI API:

A keylogger is also present in the analyzed sample. The SetWindowsHookEx() API is used to retrieve the stroked keys. The GetKeyNameText() API is used to retrieve a string that represents the name of a key. In addition to the key, the title of the foreground window is stored in order to known where the infected user is typing (by using the GetForegroundWindow() and GetWindowText() API).



This campaign shows us a motivated malware actor. The usage of HWP (an application mainly used in Korea) and the fact that emails and documents are perfectly written in Korean suggests that the author is a native Korean speaker.

The RAT used during this campaign was innovative, using novel communication channels. ROKRAT uses Twitter and two cloud platforms (Yandex and Mediafire) in order to give orders, send files, and get files. This communication channel is extremely hard to contain because organizations often have legitimate uses of these platforms. The malware includes exotic features such as the fact that it performs requests to legitimate websites (Amazon and Hulu) if the sample is executed in a sandbox or if a malware analyst tool is used. We assume the goal is to generate incorrect reports and IOC.

This investigation shows us once again that South Korean interests sophisticated threat actors. In this specific case, the actor compromised a legitimate email address of a big forum organized by a university in Seoul in order to forge the spear phishing email which increased the chance of success. And we know that it was a success, during the writing of the article we identified infected systems communicating with the command & control previously mentioned.

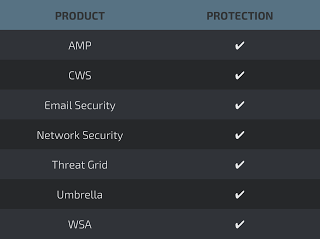

Additional ways our customers can detect and block this threat are listed below.

Advanced Malware Protection (AMP) is ideally suited to prevent the execution of the malware used by these threat actors.

CWS or WSA web scanning prevents access to malicious websites and detects malware used in these attacks.

Email Security can block malicious emails sent by threat actors as part of their campaign.

The Network Security protection of IPS and NGFW have up-to-date signatures to detect malicious network activity by threat actors.

AMP Threat Grid helps identify malicious binaries and build protection into all Cisco Security products.

Umbrella, our secure internet gateway (SIG), blocks users from connecting to malicious domains, IPs, and URLs, whether users are on or off the corporate network



HWP Documents:



Malicious URLs:

Not malicious URLs but could be use to identify RAT execution:



Account #1
Application ID: 81342


Account #1
Consumer key: sOPcUKjJteYrg8klXC4XUlk9l
Token: 722226174008315904-u6P1FlI7IDg8VIYe720X0gqDYcAMQAR

Account #2
Consumer key: sgpalyF1KukVKaPAePb3EGeMT
Token: 759577633630593029-CQzXMfvsQ2RztFYawUPeVbAzcSnwllX

Account #3
Consumer key: XVvauoXKfnAUm2qdR1nNEZqkN
Token: 752302142474051585-r2TH1Dk8tU5TetUyfnw9c5OgA1popTj

Account #4
Consumer key: U1AoCSLLHxfeDbtxRXVgj7y00
Token: 779546496603561984-Qm8CknTvS4nKxWOB4tJvbtBUMBfNCKE

Account #5
Consumer key: 9ndXAB6UcxhQVoBAkEKnwzt4C
Token: 777852155245080576-H0kXYcQCpV6qiFER38h3wS1tBFdROcQ

Account #6
Consumer key: QCDXTaOCPBQM4VZigrRj2CnJi
Token: 775849572124307457-4ICTjYmOfAy5MX2FxUHVdUfqeNTYYqj

Account #7
Consumer key: 2DQ8GqKhDWp55XIl77Es9oFRV
Token: 778855419785154560-0YUVZtZjKblo2gTGWKiNF67ROwS9MMq


Token #1: AQAAAAAYm4qtAANss-XFfX3FjU8VmVR76k4aMA0
Token #2: AQAAAAAA8uDKAANxExojbqps-UOIi8kc8EAhcq8
Token #3: AQAAAAAY9j8KAANyULDuYU1240rjvpNXcRdF5Tw
Token #4: AQAAAAAZDPB1AAN6l1Ht3ctALU1flix57TvuMa4
